DETAILS:

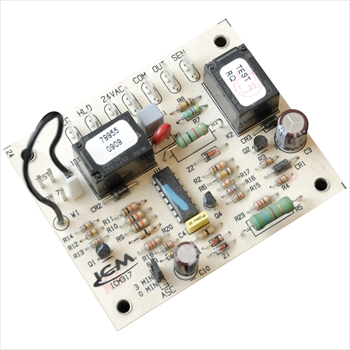

Defrost Control with compressor OFF delay for noise reduction.
- 10-minute fixed defrost time at pin-selectable 50/70/90 min intervals.
- Anti-bang reversing valve feature
- Select 0 or 3 minute anti-short cycle time
- Time and temperature terminate
- Test pins reduce test time by 256X
- HOLD input tracks compressor run times
WEIGHT/DIMENSIONS:
- Weight: 0.5
SPECIFICATIONS:
Voltage: 18-30 VAC
Frequency: 50/60 Hz
Output:
– Relay, SPST
– N.O.: 1 amp
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 50/70/90 min
