LITERARY DOWNLOADS

Installation Guide
download
DETAILS:

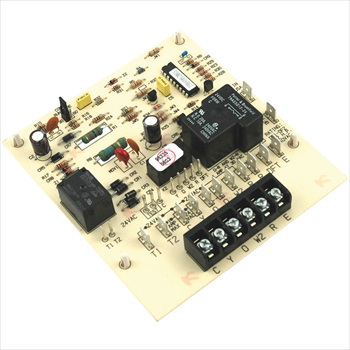

- Replacement for Nordyne 624519A
- Low cost, time and temperature defrost
- Time and temperature terminate
- Test pins reduce test time by 256X
- HOLD input tracks compressor run times
- Recycle function melts frost on coil
- Integral short cycle protection
WEIGHT/DIMENSIONS:
- Weight: 0.3
- Height: 1.75
- Width: 5
- Length: 4.5
SPECIFICATIONS:
Voltage: 18-30 VAC
Frequency: 50/60 Hz
Outdoor Fan Relay Output: 1/2 HP fan @ 240 VAC
Strip Heat, Reversing Valve Outputs: 24 Vac, 1 amp
Anti-Short Cycle Time: 5 minutes
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/60/90 min
Replaces:
Nordyne: 624519A
Recommended Alternative:
No suggested alternative
