ICM323
ICM (Obsolete/Legacy Products)

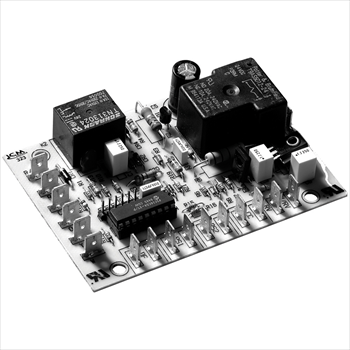

ICM323
Defrost Control
Replacement for ICP control with heat active (B) reversing valve.- Sensor input for defrost terminate
- Time and temperature terminate
- Integral short cycle protection
- Y input tracks compressor run times
- Heat active reversing valve
Input
- Voltage: 18-30 VAC
- Frequency: 50/60 Hz
- Power consumption: 1 watt maximum
Outputs
- W
- Type: Relay
- Form: SPST, normally open
- Rating: 10 amps @ 24 VAC
- Fan
- Type: Relay
- Form: SPST, normally closed
- Rating: 10 amps @ 240 VAC
- RV, CC
- Type: Triac
- Rating: 1 amp @ 30 VAC
Time Delay
- Defrost time: Fixed at 10 minutes (± 5%)
- Interval time between defrosts: Pin-selectable 30/60/90 minutes
- Power on reset time: 0-5 seconds
Weight/Dimensions
- Weight: 0.1 lb.
- Height: 1″
- Width: 3.5″
- Length: 2.875″
ICP: Heat Active (B) RV
Recommended Alternative: No suggested alternative
