Line Voltage Monitor
*This product has been replaced by the ICM450A — Learn more here

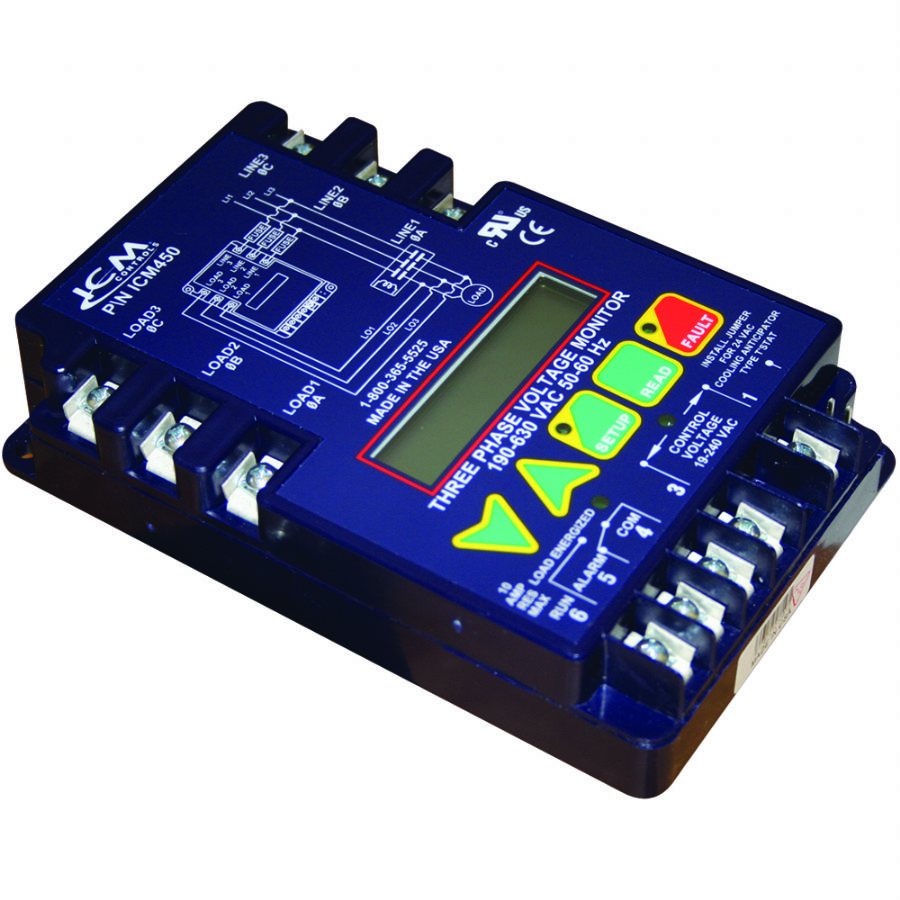

ICM450 and ICM450S
DETAILS:
This model has been discontinued/updated to the ICM450A and ICM450APlus+
Stop Motor Burnouts! The ICM450 is a programmable, 3-phase line voltage monitor that features 25-fault memory, high temperature LCD display, easy setup & clear, diagnostic readout of system faults, 190 to 630 “Universal” VAC operation and more. It was specifically designed to protect motors and other 3-phase loads from premature failure and damage due to common voltage faults such as voltage unbalance, over/under voltage, phase loss, reversal, incorrect sequencing and rapid short cycling.
- Fully programmable with LCD diagnostic display
- 25-fault memory storage, non-volatile
- Identifies front and back side faults
- Protects against: voltage unbalance, high/low voltage, phase loss, phase reversal, faulty power, incorrect sequencing and rapid short cycling
- Universal voltage operation: 190-630 VAC
Ordering Info: ICM450 (English); ICM450S (Spanish)
WEIGHT/DIMENSIONS:
- Weight: 0.8
- Height: 1.5
- Width: 4.25
- Length: 6.5
SPECIFICATIONS:
Voltage: 190-630 VAC
Frequency: 50/60 Hz
Frequency: 50/60 Hz
Voltage Unbalance: Adjustable: 2-25%
Control: 18-240 VAC
Delay on Break Timer: 1-5 minutes
Output:
– Relay, SPDT
– N.O.: 10 amps
– N.C.: 6 amps
Replaces:
A-1: EAC-800, EAC-8000, EAC-8002
Copeland: 085-0160-00
Diversified: AC-2020, AC-301, AC-302
Mars: PFM-2000
Motorsaver: 455
SSAC: QLM/QLV
Time Mark: 265
Wagner / DiversiTech: DTP-3, WPC-800
