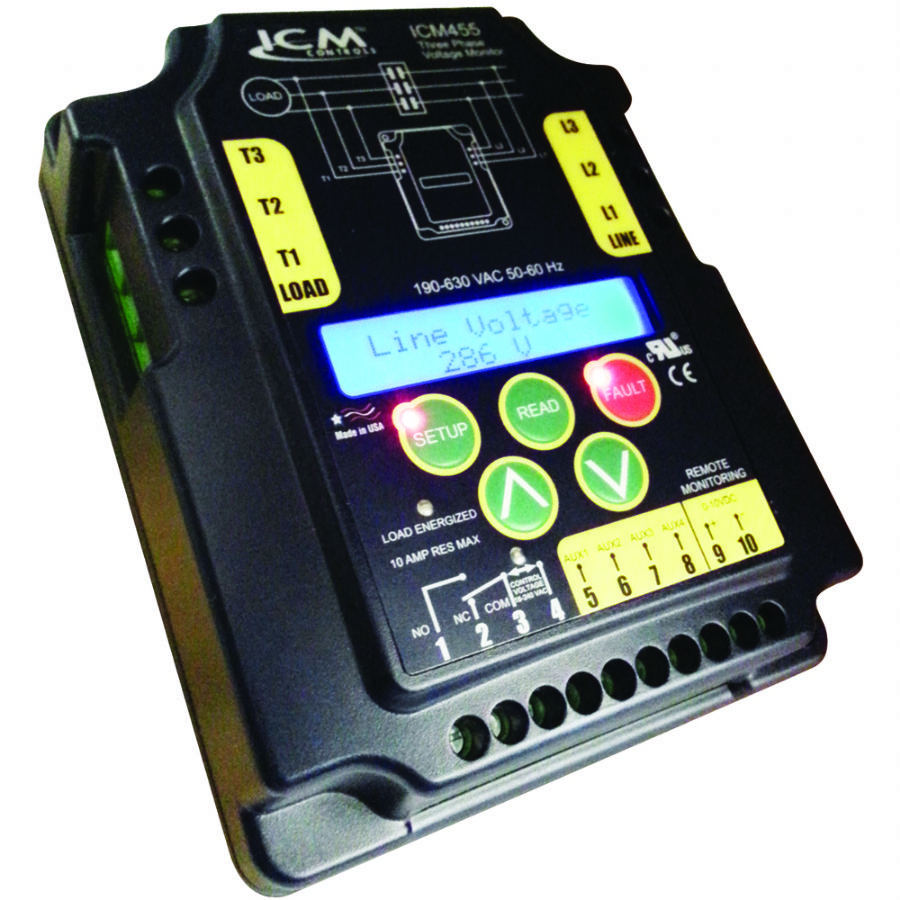

ICM455
Three-Phase Line Voltage Monitor
The ICM455 is a fully programmable, 3-phase line voltage monitor with a backlit LCD, 50+ fault memory, and a real-time clock for accurate date and time stamp. It offers complete system protection by monitoring both the line (front) and load (back) side of the system, including the power, motor and contactor lines.*This product has been replaced by the ICM450A and ICM450A+ Plus
Input
- Line Voltage: 190-630 VAC
- Frequency: 50-60 Hz
Output
- Type: Relay, SPDT
-
Voltage Range: 240VAC at 10A max.
Parameters
- Voltage Unbalance: Adjustable: 2-20%
- Fault Interrogation: Adjustable: 0-15 seconds
- Over/Under Voltage: Adjustable: 2-25%
Weight/Dimensions
- Weight: 0.7 lb.
- Height: 1.5″
- Width: 4.5″
- Length: 5.5″
A-1: EAC-800, EAC-8000, EAC-8002
Copeland: 085-0160-00
Diversified: AC-2020, AC-301, AC-302
Mars: PFM-2000
Motorsaver: 455
SSAC: QLM/QLV
Time Mark: 265
Wagner / DiversiTech: DTP-3, WPC-800
Recommended Alternative: ICM450A or ICM450A+ Plus
