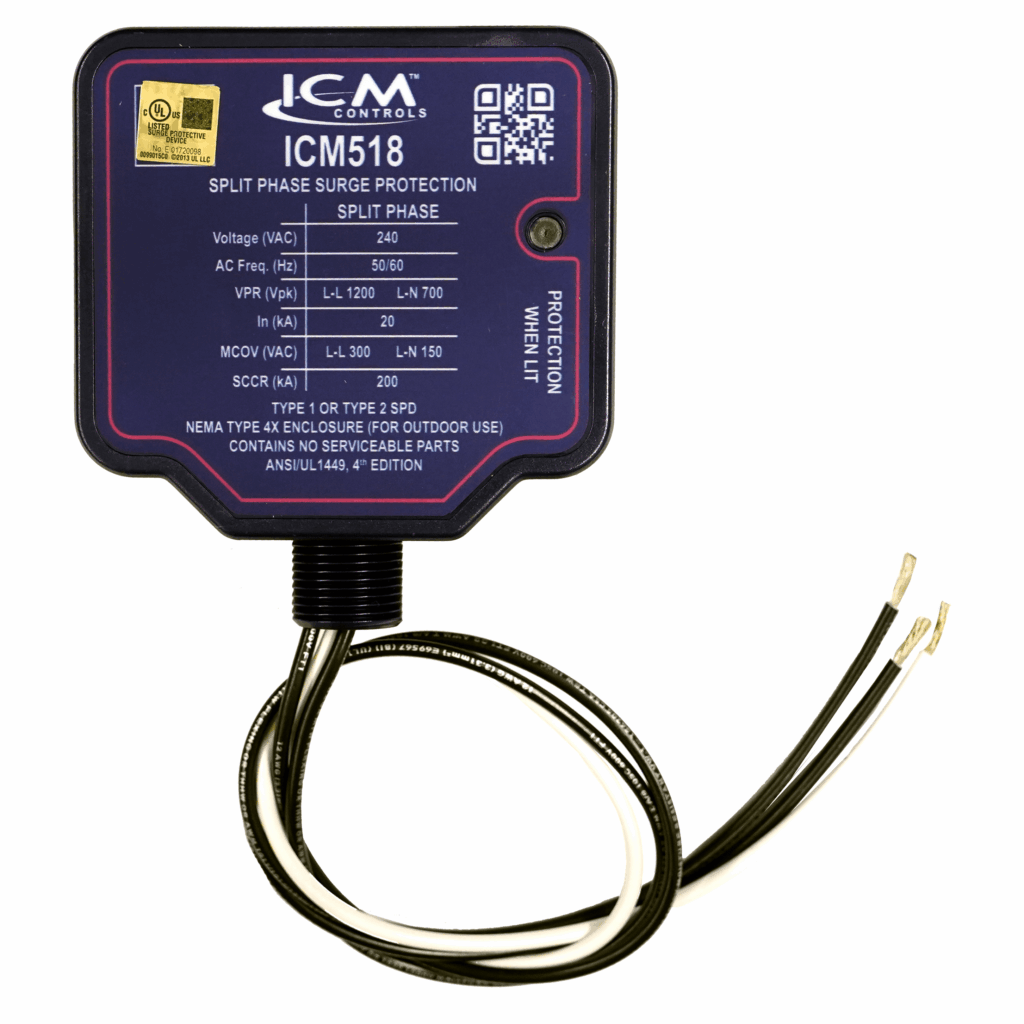

Split-Phase Surge Protective Device
The ICM518 is a UL Listed Whole-Home Surge Protective Device for 240 VAC Split-Phase configurations designed to protect a dwellings most valuable asset. It can be installed as a Type 1 (whole home) or a Type 2 Surge Protective Device. Type 1 applications include installations before a service entrance or utility meter. Type 2 applications include installations after service entrances protecting particular equipment. The ICM518 has a NEMA Type 4X waterproof rated enclosure that is suitable for both indoor and outdoor use.- Type 1 or Type 2 Whole Home SPD
- Easy 3-wire installation
- 3/4” conduit connection
- Maximum Surge Current: 100 kA
- Green LED indicator tells whether the device is operational
- Low-cost, high performance
- Rugged and reliable
- UL Listed
- NEMA Type 4X watertight enclosure for indoor/outdoor use
- Surge protection technology: Thermally protected MOVs (TFMOV)
- Limited lifetime product, up to a 3-year $10,000 connected equipment warranty
Electrical:
- Service Voltage: Split Phase 240 VAC
- Input Power Frequency: 50/60 Hz
- Short Circuit Current Rating (SCCR): 200 kA
- Nominal Discharge Current (In): 20 kA
- Maximum Surge Current: 100,000 amps
- SPD Type: Type 1 (Can also be used in Type 2 applications)
- Surge Protection Technology: TFMOV
- Protection Mode: L1-L2, L1-N, L2-N
- L-L: 300VAC
- L-N: 150VAC
Weight/Dimensions
- Length: 4.30″
- Width: 4.10″
- Height: 2.30″
ASCO: 420120S
Eaton: SP1-240S, SP2-240S
ERICO (Critec): TDX50C240
Generac: G0073000
Intermatic: AG2401C3, IG1200RC3, IG1240RC3, IG3240RC3
Leviton: 55240-ASA
MARS: 83905
Siemons: TPS3A
Ditek: DTK 120/240HD2
Citel: MLPXUVG
