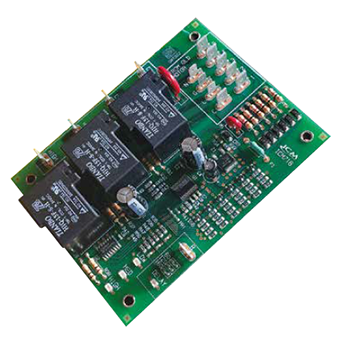

ICM716

Motor Speed Controls

ECM to PSC Motor Controller

The ICM716 allows a technician to change out an X13 or SelecTech constant torque ECM rated up to 1 HP with a single phase PSC motor and variable speed control board operating at an optional technician selected purge time.

DETAILS:

Allows an X13 or SelecTec constant torque ECM control to control a Single phase PSC motor
Eliminates costly ECM repairs
3 High power relay outputs for automated speed selection
3 LED’s indicate selected speed
LED indicator illuminates when off delay is active
User selectable 60, 120, or 180 second off delay

SPECIFICATIONS:

Motor Voltage: 120 VAC or 208-240 VAC
Input Control Voltage: 24 VAC
Input Frequency: 50-60 Hz
Maximum Blower Horse Power: 1 HP

WEIGHT/DIMENSIONS:

Size: 4.95” x 3.95”

LITERARY DOWNLOADS:

Sell Sheet download

Application/Install Guide download

Videos:

No videos found.

Replaces:

QwikSwapX3
